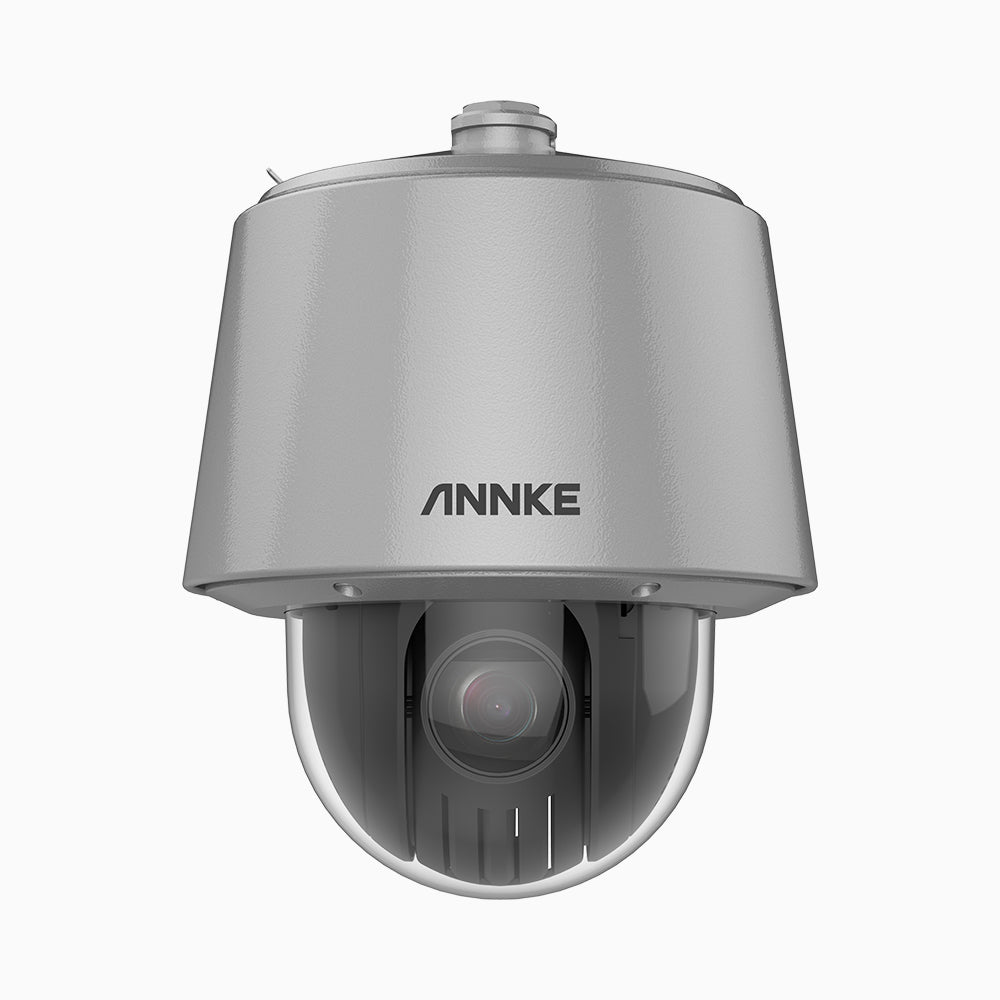

Constructed of industrial-grade stainless steel and anti-corrosion coating, this NEMA 4X-certified camera can withstand heavy impact in harsh weather conditions, which is ideal for applications such as coastlines, docks, chemical plants, and more.
IP67 rated, this waterproof camera can be used for extreme indoor and outdoor use from -40 °F/-40° C to 158 °F/70° C. Including IK10 riot rating, 6KV lightning protection rating, it ensures that security cameras work seamlessly in all hot, cold or severe weather.
Equipped with a 5.9 mm to 188.8 mm@F1.5 lens, this camera can deliver the incomparable 32X optical zoom and 16X digital zoom. Zoom in can clearly see more details of distant objects, or zoom out can get a wider and larger field of vision. Optical zoom can ensure that the picture is clear and not affected.
With 360° pan & 90° tilt, this camera allows you to view your world from every angle. Supporting 8 patrol scan(up to 32 presets for each patrol), 4 pattern scan(record time over 10 minutes for each scan).
Capturing every event in crisp 1080p Full HD clarity by 1/1.8" progressive scan CMOS sensor, this camera has exceptional low-light visibility tech and deliver up to full color night vision in almost complete darkness. (The image will turn into black & white when in 0.0002 lux condition.)
With multiple tracking methods, including: manual tracking, event tracking, auto-tracking, to automatically follow the moving person & car.
Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face. This HD PTZ camera enables you to view small & distant vehicle details, such as license plates, car model, color, etc.
The camera uses an intelligent algorithm based on a deep learning platform and supports 7 types of intelligent detection functions to provide more accurate motion monitoring and alarm, including: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection.
The anti-corrosion camera adopts 5 incredible image enhancement technologies – 140 dB true WDR, 3D DNR, defog, EIS & HLC – to provide the splendid HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.
This H.265+ PoE IP camera provides smoother live stream, records longer videos and consumes less bandwidth & storage space, compared with H.265, H.264+ & H.264 IP cameras.
This versatile network camera can record videos onto your microSD card (up to 2567 GB), NVR and NAS, no monitoring & no monthly cloud storage fees. You’ ll have full control over your recordings and manage them whenever.
Thanks to Power over Ethernet (PoE) technology, this PTZ outdoor security camera can transmit videos and be charged simultaneously via Hi-POE, or plug it into an outlet for the power supply.
Camera | |
Image Sensor | 1/1.8” progressive scan CMOS |
Min. Illumination | Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON) |
Shutter Speed | 1/1s ~ 1/30,000s |
Slow Shutter | Yes |
Focus | Semi-auto,manual,auto |
Day & Night | ICR |
Day/Night Switch | Day, night, auto, scheduled-switch |
BLC | Yes |
WDR | 140 dB WDR |
HLC | Yes |
3D DNR | Yes |
Defog | Yes |
EIS | Yes. Built-in gyroscope to improve EIS performance. |
Regional Exposure yes | Yes |
Regional Focus yes | Yes |
White Balance | Auto,ATW,sodium lamp,fluorescent lamp,indoor,outdoor,MWB,Locked WB |
Digital Zoom | 16 × |
Optical Zoom | 32 × |
Privacy Mask | Up to 24 masks,polygon region ,mosaic mask ,mask color configurable |
DORI | Detect(25px/m): 2604.1 m Observe(63px/m): 1033.4 m Recognize(125px/m): 520.8 m Identify(250px/m): 260.4 m |
SNR | ≥52dB |
General Function | Mirror, password protection, watermark, IP address filter |
Selection Parameter | |
Specific Protection | Anti-Corrosion |
Lens | |
Focal Length | 5.9 mm to 188.8 mm, 32 × Optical |
Zoom Speed | Approx. 4.5 s |
FOV | Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele) |
Aperture | F1.5 |
PTZ | |
Movement Range (Pan) | 360° |
Movement Range (Tilt) | -15° to 90° (auto flip) |
Pan Speed pan speed: | Configurable from 0.1° to 300°/s; preset speed: 540°/s |
Tilt Speed tilt speed: | Configurable from 0.1° to 240°/s, preset speed 400°/s |
Proportional Zoom | Yes |
Presets | 300 |
Patrol Scan | 8 patrols, up to 32 presets for each patrol |
Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
Power-off Memory | Yes |
Park Action | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
3D Positioning | Yes |
PTZ Status Display | Yes |
Preset Freezing | Yes |
Scheduled Task | Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
Video | |
Max. Resolution | 1920 × 1080 |
Main Stream | 50Hz:25fps(1920×1080,1280×960,1280×720) 60Hz:30fps(1920×1080,1280×960,1280×720) |
Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Video Compression | H.265,H.264,MJPEG |
Video Bit Rate | 32 Kbps ~ 16384 Kbps |
H.264 Type | Baseline profile,main profile,high profile |
H.265 Type | Main profile |
H.264+ | Yes |
H.265+ | Yes |
SVC | Yes |
ROI | Fixed region |
Audio | |
Audio Compression | G.711alaw,G.711ulaw,G.722.1,G.726,MP2L2,PCM |
Audio Bit rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2) |
Smart Features | |
Face Capture | Support detecting up to 30 faces at the same time. Support detecting, tracking,capturing, grading, selecting of face in motion, and output the best face picture of the face. |
Road Traffic | Support vehicle detection (license plate number,vehicle model, and vehicle color recognition) |
Basic Event | motion detection,video tampering alarm,alarm input and output,exception |
Smart Event | Intrusion detection,line crossing detection,region entrance detection,region exiting detection,loitering detection,people gathering detection,fast moving detection,parking detection,unattended baggage detection,object removal detection,vandal-proof alarm,audio exception detection |
Smart Tracking | Manual tracking,event tracking,auto-tracking |
Smart Record | ANR,Dual-VCA |
Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record,Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
Network | |
Network Storage | NAS (NFS, SMB/ CIFS),ANR |
Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
API | Open-ended API, ISAPI,Hikvision SDK,Third-party management platform,Ehome,ISUP,ONVIF (Profile S, Profile G, Profile T) |
Simultaneous Live View | Up to 20 channels |
User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
Smooth Streaming | yes |
Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering encryption; IEEE 802.1x port-based network access control; IP address filtering |
Client | iVMS-4200,Hik-Connect,Hikcentral |
Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
Supplement Detection | |
Compass | Yes |
Interface | |
Communication Interface | RJ45, self-adaptive 10M/100M Ethernet port |
On-board Storage | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB;NAS (NFS, SMB/CIFS), ANR |
Alarm Input | 7 alarm inputs |
Alarm Output | 2 alarm outputs |
Audio Input | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
Audio Output | 1 audio output, line level, impedance: 600 Ω |
Video Output | 1.0V[p-p]/75Ω,PAL,NTSC,BNC connector |
RS-485 | IPCAM, Pelco-P, Pelco-D, self-adaptive |
General | |
Power | 24 VAC, max. 45 W (including max. 5 W for heater), Hi-PoE |
Material | SUS316L stainless steel |
Operating Conditions | Temperature:-40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
Web Client Language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
Protection | Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5,IP67 Standard,IK10 |
General | |
Anti-Corrosion | NEMA 4X |
