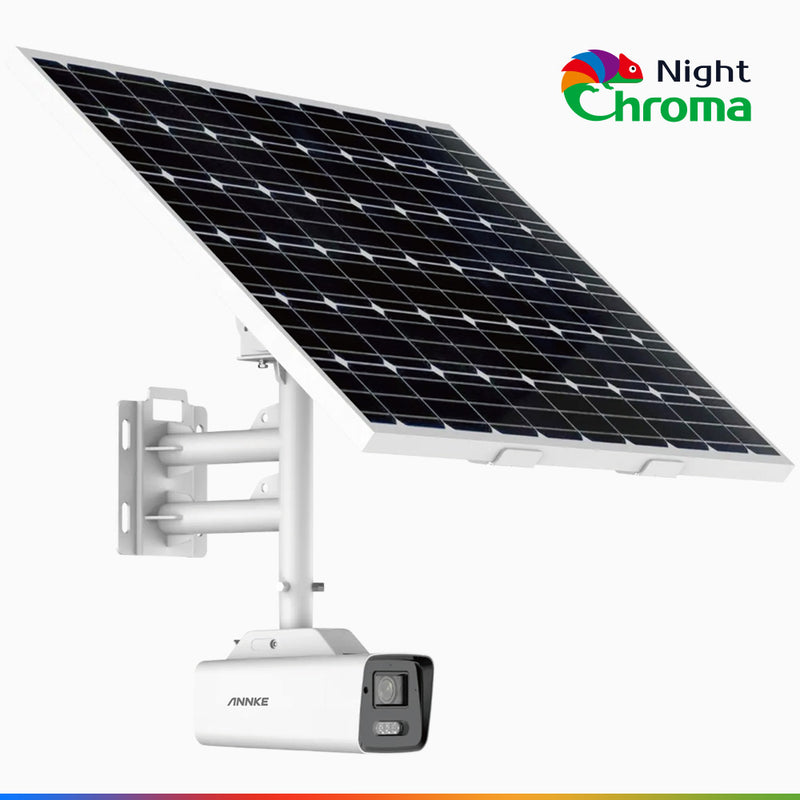

All-day Protection – 24/7 Color Imaging
The 2.8/4 MM lens covers up to 124°/102° diagonal FoV, and delivers best 4K Ultra HD (3840 x 2160@25fps) footages in all environments, every detail is captured in clear clarity, ensuring that no event or incident goes unnoticed. But what truly sets it apart is its exceptional TRUE acme color night vision capability, this camera utilizes advanced technology to deliver vivid and detailed color images, ensuring you never miss critical details, even in the darkest of nights.
Designed for A Variety of Industry Applications
The solar powered 4G camera can be used in areas that are not suitable for laying wired network and electrical supply lines, and locations with challenging environments that require device stability. Industry applications range from construction sites, monitoring farms, temporary site locations, electric power cable lines, water and river systems, oil pipelines, and forests.
Reliable Performance, Stay Strong
Made of tough metal, the heavy-duty camera can withstand large impacts and is highly resistant to corrosion. IP67 rated, this camera can be used in a variety of extreme environments from -20 °F/-30° C to 140 °F/60° C. It’s well suited for construction sites, outdoor venues, special event locations, and more.
100% Wire-Free, No Wiring Hassles
Built in 30 Ah chargeable lithium battery and 80W solar panel, it ensures that you never have to worry about battery life or electricity shortages. It remains fully charged at all times, enabling a completely wire-free outdoor security experience. Power is no longer a problem.
Works Perfectly with No WiFi
Compatible with LTE-TDD/LTE-FDD/WCDMA/GSM 4G networks, the outdoor-ready 4G LTE camera can perfectly work in remote and faraway areas without wireless or PoE networking. Stay connected and capture every moment with ease, thanks to its support for Micro SIM cards, enabling seamless mobile communication.
Perform Standalone Outdoor
Designed to perform standalone, the outdoor camera comes with 64GB of eMMC capacity and a MicroSD card slot (support TF card up to 256GB). Recoding more clips without worrying frequently data overwriting or monthly cloud fees.
Experience Stunning Image Quality
This camera boasts an impressive 120 dB true WDR for unparalleled dynamic range, 3D DNR for noise reduction, and advanced BLC & HLC features for optimal exposure control. Enjoy crystal-clear visuals, even in challenging lighting conditions. Elevate your viewing experience with our state-of-the-art technology.
| Camera | Image Sensor | 1/1.2" Progressive Scan CMOS |
| Max resolution | 3840 × 2160 | |
| Main Stream | 50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
| Substream | 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360) |
|
| Video Compression | Main stream: H.265 Sub-stream: H.265/MJPEG *Full power mode: main stream supports H.265+ |
|
| Video Bitrate | 32 Kbps to 16 Mbps | |
| Lens | 2.8 mm@F1.0 | |
| DORI | D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m | |
| Angle of View | Horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124° | |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light | |
| Supplement Light Type | White Light | |
| Supplement Light Range | Up to 30 m | |
| Basic Event | Motion detection(human and vehicle targets classification), video tampering alarm, exception | |
| Smart Event | Line crossing detection,intrusion detection,region entrance detection,region exiting detection, unattended baggage detection, object removal detection, The smart events are only supported under full power mode.Focus on human and vehicle targets classification based on deep learning. | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| Wide Dynamic Range | 120 dB WDR | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS | |
| API | Open Network Video Interface Version 18.12, ISAPI, ISUP | |
| Region of Interest (ROI) | 4 fixed regions for main stream | |
| Privacy Mask | 4 programmable polygon privacy masks | |
| General Function | Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter,remote access, image parameters switch | |
| Ethernet | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| Mobile Communication | SIM Card Type | MicroSIM |
| Frequency | EU: LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: Band3/5/8 US: LTE-FDD: Band2/4/5/12/13/17/66/71 WCDMA: Band2/4/5 LA: LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66 WCDMA: Band1/2/3/4/5/8 GSM: Band2/3/5/8 JP: LTE-TDD: Band41 LTE-FDD: Band1/3/8/11/18/19/21/26/28 WCDMA: Band1/8 |
|
| Standard | EU: LTE-TDD/LTE-FDD/WCDMA/GSM US: LTE-FDD/WCDMA LA: LTE-TDD/LTE-FDD/WCDMA/GSM JP: LTE-TDD/LTE-FDD/WCDMA |
|
| General | Housing | Front cover: metal, body: metal, bracket: metal |
| Color | White | |
| RS-485 | 1 RS-485 (half duplex) | |
| Storage | Built-in 64 GB eMMC storage, built-in microSD/SDHC/SDXC Slot, up to 256 GB, NAS | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| Hardware Reset | Yes | |
| Operating Power | 12 VDC ± 20%, Ø5.5 mm coaxial power plug 1. Standby power consumption: 53 mW 2. The average power consumption of 24 hours: 2 W (4G transmission is excluded). 3. The max. power consumption: 3.2 W |
|
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) | |
| Indoor/Outdoor Use | Indoor/Outdoor | |
| Protection | IP67, wind resistance 12 level, up to 40 m/s wind speed resistance | |
| Dimension (L X W X H) | 829.9 × 696.3 × 760 mm (32.7" × 27.4" × 30") (Max. size of the camera after it is completely assembled) | |
| Weight | Approx. 25.4 kg (56.0 lb.) | |
| Package Dimension | 862 × 292 × 765 mm (33.9" × 11.5" × 30.1") | |
| Weight | Approx. 30.1 kg (66.3 lb.) | |
| Solar Panel | Photovoltaic panels | 80W |
| Dimension | 760 × 640 mm(29.9" × 25.2") | |
| Battery | Battery Type | Lithium |
| Capacity | 30 Ah | |
| Max. Output Voltage | 12.6 V | |
| Battery Voltage | 10.8 V | |
| Operating Temperature | Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F) |
|
| Battery Life | More than 500 cycles | |
| Battery Weight | Approx. 3.3 kg (7.3 lb.) | |
| Extended Dimension | 236 × 154 × 80 mm (9.3" × 6.1" × 3.2") |
