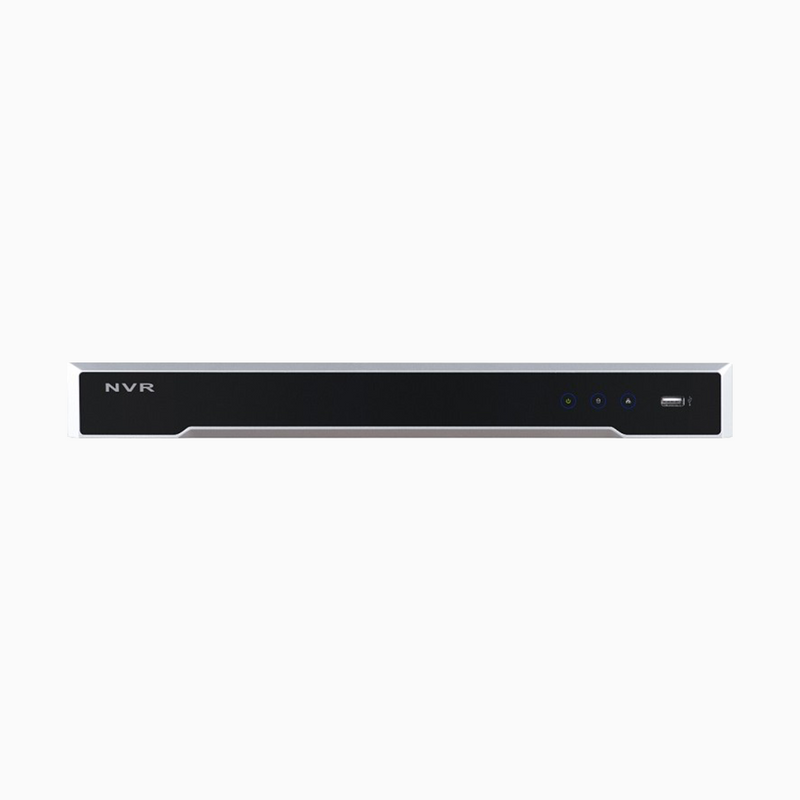

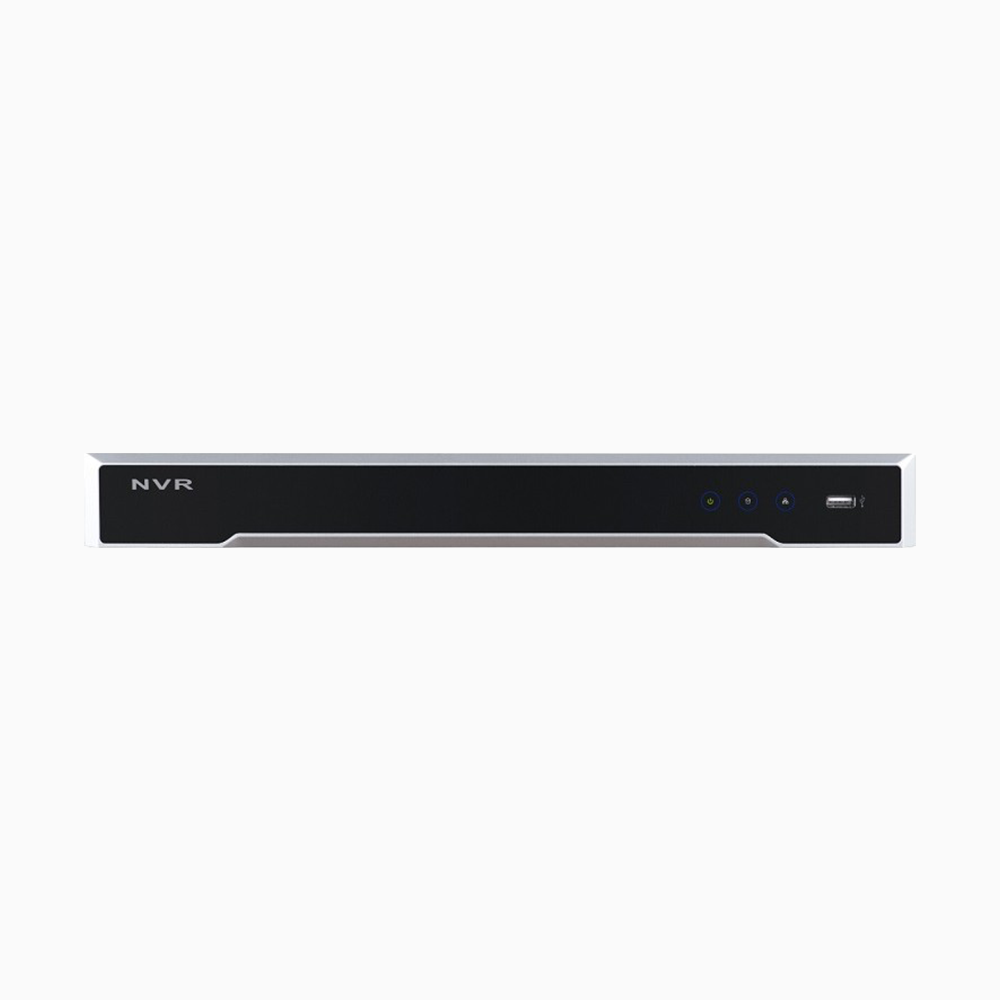

4K 16 Channel Non-PoE NVR, Up to 32MP Resolution, USB 3.0 Interface, Supports Thermal/Fisheye/People Counting/Heatmap/ANPR Cameras

4K 16 Channel Non-PoE NVR, Up to 32MP Resolution, USB 3.0 Interface, Supports Thermal/Fisheye/People Counting/Heatmap/ANPR Cameras
SKU: N961BB
$399.99
$479.99
$399.99
HDD Capacity: NO HDD
Ask An Expert
Subtotal: $399.99
4K 16 Channel Non-PoE NVR, Up to 32MP Resolution, USB 3.0 Interface, Supports Thermal/Fisheye/People Counting/Heatmap/ANPR Cameras

4K 16 Channel Non-PoE NVR, Up to 32MP Resolution, USB 3.0 Interface, Supports Thermal/Fisheye/People Counting/Heatmap/ANPR Cameras

$479.99 $399.99
4K 16 Channel Non-PoE NVR, Up to 32MP Resolution, USB 3.0 Interface, Supports Thermal/Fisheye/People Counting/Heatmap/ANPR Cameras

4K 16 Channel Non-PoE NVR, Up to 32MP Resolution, USB 3.0 Interface, Supports Thermal/Fisheye/People Counting/Heatmap/ANPR Cameras

$479.99 $399.99
HDD Capacity: NO HDD
Description

Up to 32MP 4K Ultra HD Stream

This powerful network video recorder can connect up to 16 pcs PoE IP cameras. Please note that you can only connect 1-channel 32MP camera (30 fps recording rate) to the NVR after you have enabled Ultra HD resolution mode.

Work with All ONVIF PoE IP Cameras

This ONVIF NVR works with all ANNKE PoE security cameras and third-party ONVIF IP cameras, from 720p all the way to 32MP 4K resolution. The NVR doesn’t come with the PoE ports. Please connect the NVR to the router, and then connect your cameras to the same router for 24/7 recording.

Powerful & Versatile Compatibility

This NVR, as the central hub of a security camera system, supports different special functions, including fisheye, people counting, ANPR (automatic number plate recognition). Your camera should support one of these functions, if you want to integrate the functions with your NVR.

Quintuple Video Format

The latest H.265+ video format consumes less storage space & bandwidth without losing the 4K Ultra HD clarity. Quintuple H.265+/H.265/H.264+/H.264/MPEG-4 video format allows for maximum encryptions and backward compatibility with legacy platforms.

Remote Access & Motion Alerts

Access the hybrid network video recorder via free ANNKE Vision App remotely for live stream, video playback & remote setup. When there are motion events, you will receive instant app push notifications and email alerts. You’ll never miss any important moment.

Specifications

Download N961BB Specification

What's in the Box
  • 1 X NVR
  • 1 X USB Mouse
  • 1 X Power Adapter
  • 1 X 1M network cable
  • 1 X 1.8M HDMI cable
  • 1 X User's Manual For NVR
    • N961BB
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input16-ch
    Video OutputHDMI up to 4K,  VGA up to 1080P Audio Input/Output1/1 RCA
    Incoming Bandwidth160 M Max Recording ResolutionUp to 12 MP resolution,  32 MP and 24 MP is only available for channel 1
    Max Playback ResolutionUp to 32MP Max Playback Channel16-CH
    ONVIF ProtocolsSupport HDD2 SATA Interface
    Max Playback Capacity1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30
    fps)/16-ch@1080p (30 fps)    		 Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    HDD CapacityUp to 10 TB Capacity for Each HDD USBFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
    Alarm Input/Output4/1 Operating Power12 VDC, 3.33 A
    Power Consumption≤ 15 W Working Temperature14 °F ~ 131 °F/-10 °C ~+55 °C
    Dimensions (W X H X D)385 × 315× 52 mm (15.2" × 12.4" × 2.0") Weight (Without Hard Disk)≤ 1 kg (2.2 lb)
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    IP Video Input16-ch
    Video OutputHDMI up to 4K,  VGA up to 1080P
    Audio Input/Output1/1 RCA
    Incoming Bandwidth160 M
    Max Recording ResolutionUp to 12 MP resolution,  32 MP and 24 MP is only available for channel 1
    Max Playback Channel16-CH
    Max Playback ResolutionUp to 32MP
    HDD2 SATA Interface
    ONVIF ProtocolsSupport
    Max Playback Capacity1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30
    fps)/16-ch@1080p (30 fps)
    Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    HDD CapacityUp to 10 TB Capacity for Each HDD
    USBFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
    Alarm Input/Output4/1
    Operating Power12 VDC, 3.33 A
    Power Consumption≤ 15 W
    Working Temperature14 °F ~ 131 °F/-10 °C ~+55 °C
    Dimensions (W X H X D)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
    Weight (Without Hard Disk)≤ 1 kg (2.2 lb)
