View Every Detail in 32MP 4K Ultra HD
32MP 4K Ultra HD footages play an important role on protecting your home & business. Should any incident or intrusion happen, crystal 32MP 4K Ultra HD images can act as important evidences for case investigation.
Powering Decoding Ability
This network video recorder can connect up to 64 pcs 32MP PoE IP cameras. Decoding Capability: 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps).
Full HD HDMI & VGA Output
The NVR supports 2 channel 8K HDMI and 2 channel 1080p VGA full HD outputs, so you can connect an HD monitor to it for live viewing and video playback.
Work with All ONVIF PoE IP Cameras
This ONVIF NVR works with all ANNKE PoE security cameras and third-party ONVIF IP cameras, from 720p all the way to 32MP resolution. The NVR doesn’t come with the PoE ports. Please connect the NVR to the router, and then connect your cameras to the same router for 24/7 recording.
Powerful & Versatile Compatibility
This NVR, as the central hub of a security camera system, supports different special functions, including fisheye, people counting, ANPR (automatic number plate recognition). Your camera should support one of these functions, if you want to integrate the functions with your NVR.
Quintuple Video Format
The latest H.265+ video format consumes less storage space & bandwidth without losing the 4K Ultra HD clarity. Quintuple H.265+/H.265/H.264+/H.264/MPEG-4 video format allows for maximum encryptions and backward compatibility with legacy platforms.
Remote Access & Motion Alerts
Access the hybrid network video recorder via free ANNKE Vision App remotely for live stream, video playback & remote setup. When there are motion events, you will receive instant app push notifications and email alerts. You’ll never miss any important moment.

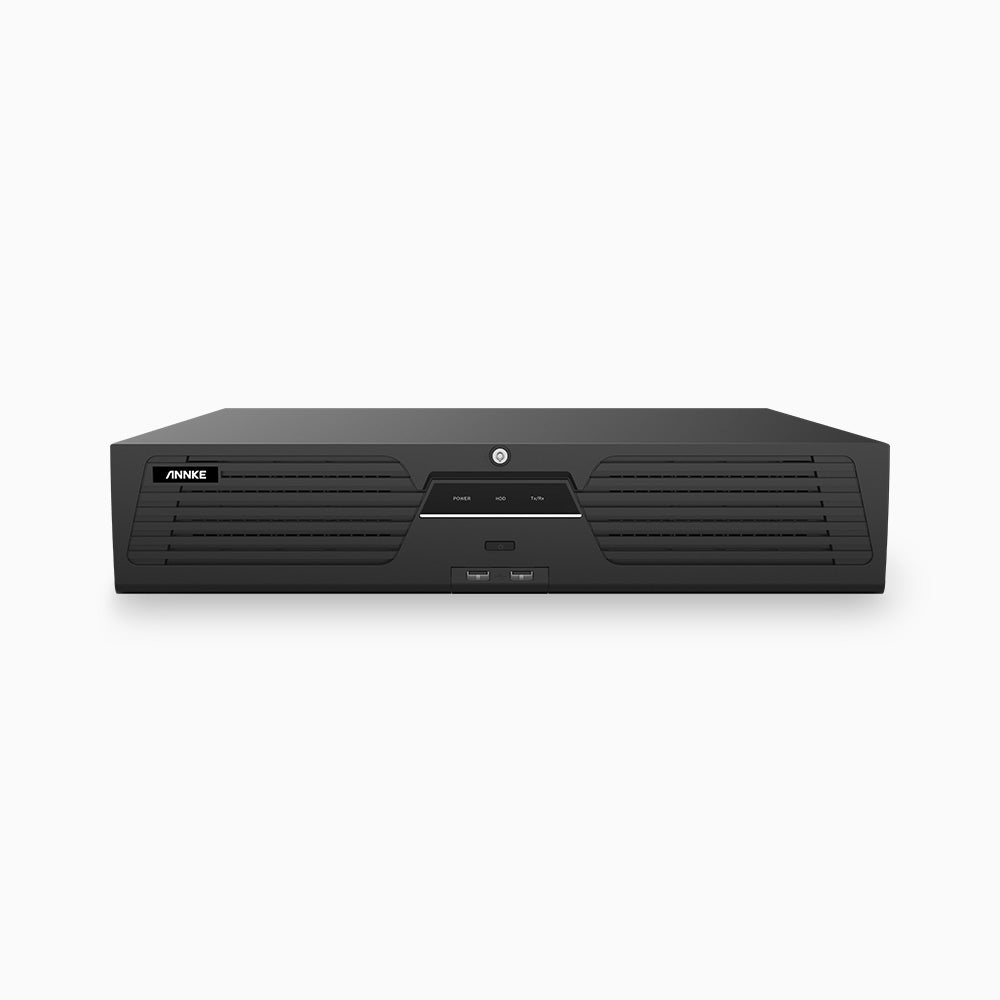

| Model Number | N951BC | |
| NVR | ||
| Video & Audio | Decoding Format | H.264+/H.264/H.265/H.265+ |
| IP Video Input | 64-ch | |
| Video Output | HDMI 1 up to 8K, HDMI 2 up to 4K, VGA 1 & VGA 2 up to 1080p, CVBS | |
| Audio Input/Output | 2/1 RCA | |
| Incoming & Outgoing Bandwidth | 400/400Mbps | |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3MP/1080p | |
| Synchronous Playback | 16-CH | |
| Decoding Capability | 2-ch@32 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps) | |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM | |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
| Hard Drive | HDD | 8 SATA Interface, 1 eSATA interface |
| HDD Capacity | Up to 14 TB Capacity for Each HDD | |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 | |
| External Interface | Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Serial Interface | 1 RS-485 (full-duplex), 1 RS-232 | |
| Alarm Input/Output | 16/9 | |
| Power output | Ctrl 12V 1A& DC 12V 1A | |
| USB | Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 | |
| General | Operating Power | 100 to 240 VAC, 50 to 60 Hz |
| Max. Power | 200 W | |
| Power Consumption | ≤ 50 W (without HDD) | |
| Chassis | 2U chassis | |
| Working Temperature | 14 °F ~ 131 °F/-10 °C ~+55 °C | |
| Dimensions (W X H X D) | 445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7") | |
| Weight (Without Hard Disk) | ≤ 10 kg (22 lb) | |
