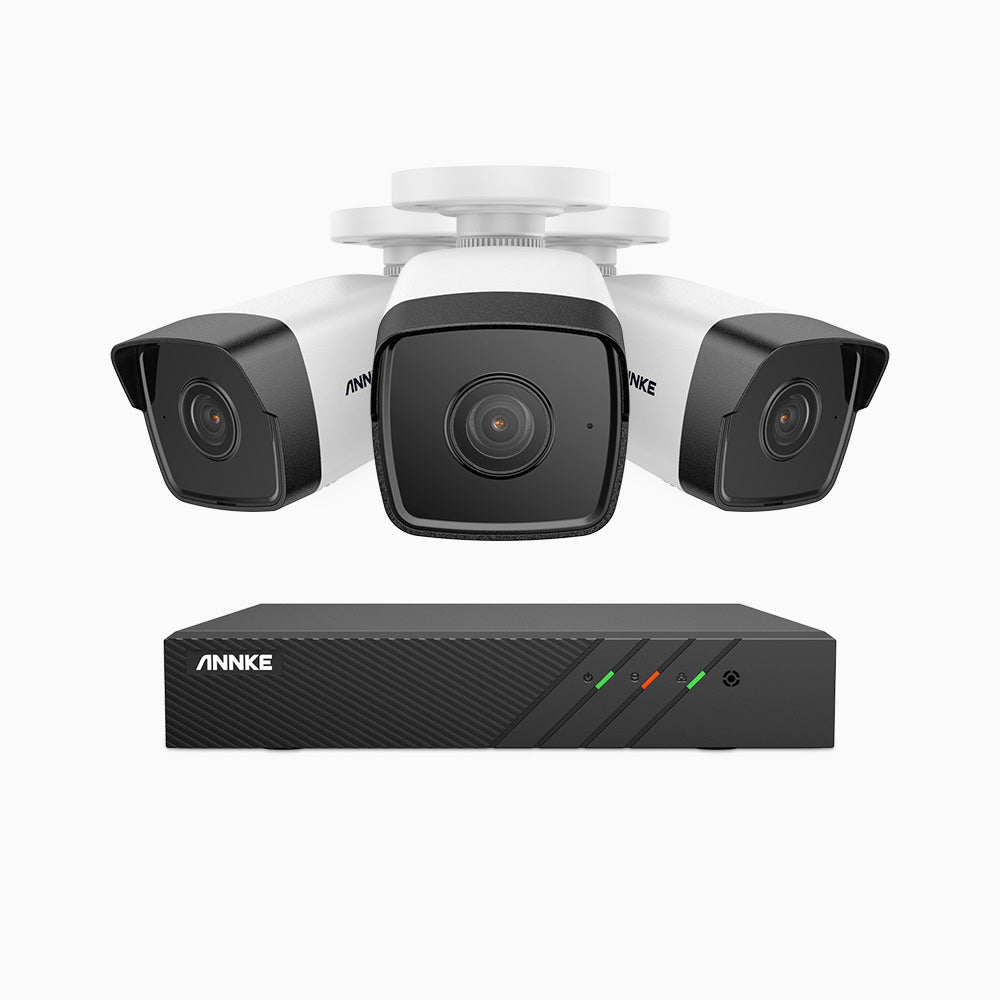

ANNKE H500
Incredibly Easy PoE
Incomparable 3K Super HD
True 3K Super HD at 20 fps
With the advanced OmniVision sensor, 120 dB true WDR & 3D DNR, this IP camera brings industry-leading 3K Super HD at smooth 20 fps (3072 X 1728 pixels).
Up to 91° diagonal FoV for 2.8 MM lens, to cover wide-range areas like foyers, front/back doors or yards, parking lots, warehouses, etc.
EXIR 2.0 Night Vision with External Lighting
ANNKE-designed color night vision tech enables the camera to produce colorful videos over 0.028 lux illumination with the external light sources around the camera.
Equipped with the exceptional EXIR tech & smart IR, the camera delivers up to 100 ft long-range black & white night vision in 0 lux illumination conditions, which are too dark to render color images.
Noise-Cancelling Audio
The built-in noise-cancelling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away.
Listen-in Audio: Audio recording enhances the security coverage and the ability to interpret events. Record videos with vivid sound instead of silent footages.
Mute Function: Audio record might be regulated based on your location. If the audio surveillance is not allowed or you don’t want audio record, simply mute it.
IP67 Weatherproof – Extreme Weather Capabilities
IP67 rated, the camera is fully weatherproof & can be immersed in 1 m of water for 30 mins. It continues to operate in extreme temperatures as low as -22 °F (-30 °C). Torrential downpours, heavy winds, freezing snow storms, the camera braves them all.
-22 °F | -30 °C
Cold Rating
Metal & ABS
Rugged Housing
140 °F | 60 °C
Hot Rating
IP67
Water Rating
Small on Prices, Big on Features
PoE or DC Power
Power on the camera via PoE with an NVR/PoE injector, or plug it to an outlet for power supply.
Local Storage
Supports up to 256 GB TF card (not included) for local video storage without monthly cloud fees.
Customized Motion Areas
Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.
Motion Alerts & Remote Access
Receive instant app pushes & email alerts when there are motion events. Control the camera remotely with smart devices.
|
|
|
|
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720) |
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Sub-stream: H.265/H.264/MJPEG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720) |
|
|
|
|
|
|
|
|
|
Sub-stream: H.265/H.264/MJPEG |
|
|
|
|
|
|
|
|
|
|
|
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720) |
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360) |
|
|
|
|
Sub-stream: H.265/H.264/MJPEG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720) |
|
|
|
Sub-stream: H.265/H.264/MJPEG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60Hz: 20 fps (2592 × 1944), 30 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60Hz: 20 fps (2592 × 1944), 30 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PoE: Max 25.5 W for Single Port |
|
|
|
|
|
|
|
|
|
PoE: Max 25.5 W for Single Port |
