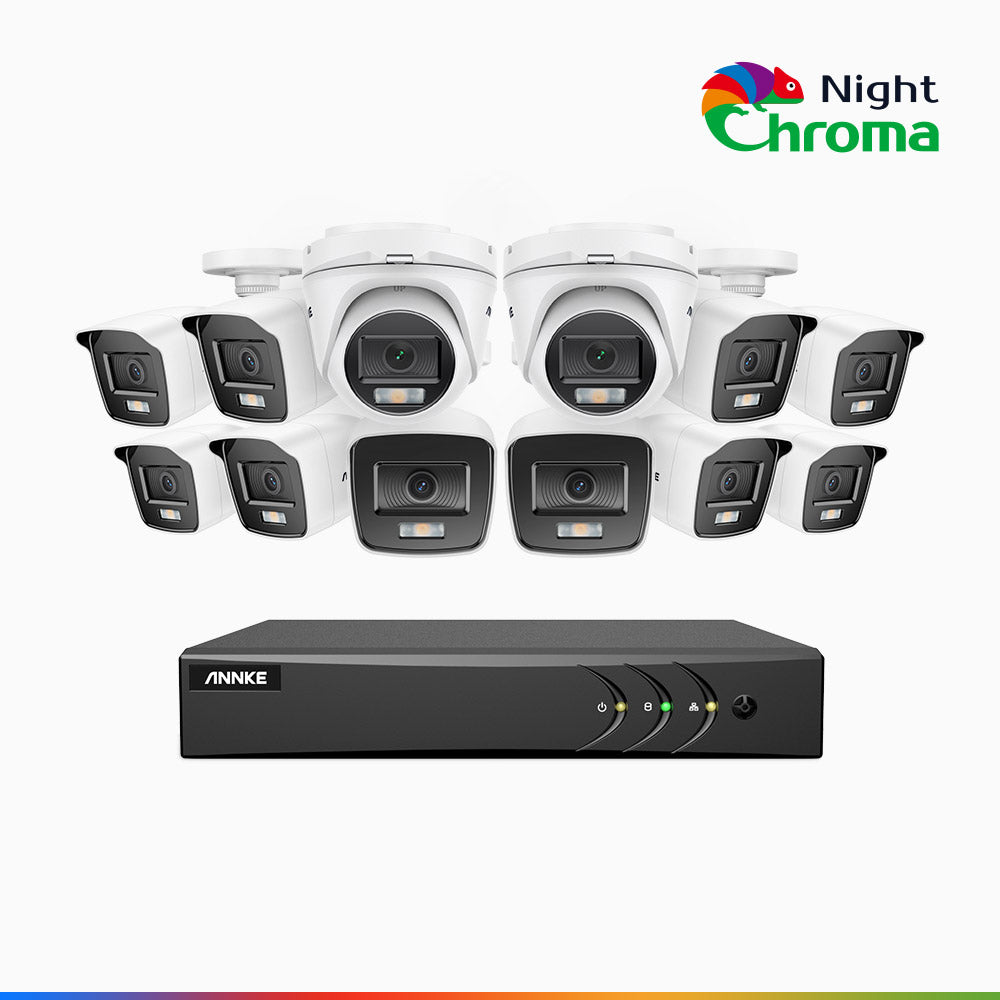

NightChromaTM NAK200 - 1080P 16 Channel Wired CCTV System with 10 Bullet & 2 Turret Cameras, Acme Colour Night Vision, f/1.0 Super Aperture, 0.001 Lux, 121° FoV, Active Alignment

SKU: DW61LD+CT1DW*10+C51EZ*2
$403.99
$459.99
$403.99
HDD Capacity: NO HDD
Subtotal: $403.99
NightChroma<sup>TM</sup> NAK200 - 1080P 16 Channel Wired CCTV System with 10 Bullet & 2 Turret Cameras, Acme Colour Night Vision, f/1.0 Super Aperture, 0.001 Lux, 121° FoV, Active Alignment

NightChroma<sup>TM</sup> NAK200 - 1080P 16 Channel Wired CCTV System with 10 Bullet & 2 Turret Cameras, Acme Colour Night Vision, f/1.0 Super Aperture, 0.001 Lux, 121° FoV, Active Alignment

$459.99 $403.99

NightChroma<sup>TM</sup> NAK200 - 1080P 16 Channel Wired CCTV System with 10 Bullet & 2 Turret Cameras, Acme Colour Night Vision, f/1.0 Super Aperture, 0.001 Lux, 121° FoV, Active Alignment

$459.99 $403.99
HDD Capacity: NO HDD

Paint Starry Night into 1080p Colorful World

World’s FIRST & ANNKE-ONLY
Acme Color Night Vision

NightChormaTM NCA200 takes smart security to the next level with unrivaled acme color night vision. Say goodbye to boring B&W or blurry color night vision captured by traditional cameras. Instead, you can paint dark night into 1080p colorful world even in 0.001 lux conditions without ambient lighting, or 0 lux with the supplement light.

1080p Full HD at Smooth 30 fps

The 2MP CMOS image sensor is capable of recording (a DVR is needed) at a real-time 25/30 fps in 1080p Full HD. This high frame rate will help capture the precise & vivid moments in your gardens, garages, studios, luxury or jewelry stores, candy houses.

4 Top-of-the-Line Image Enhancement Technologies

The wired camera adopts 4 incredible image enhancement technologies – 130 dB WDR, 3D DNR, BLC & HLC – to provide the splendid 5MP Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

Industry-Leading H.265+ Video Format

24/7 Security with ANNKE 4K Ultra HD DVR

ANNKE 5MP DVR is the perfect cornerstone for your home & business security camera system. Pairing the NCA200 wired camera with this DVR, you can get remote live stream & playback, smart motion alerts and 24/7 recording (an HDD is needed) without monthly cloud storage fees.

Note: NCA200 needs a DVR for live stream & recording, and it CANNOT work standalone.

Built to Brave Extreme Hot & Cold Climates

Rated as IP66, this weatherproof camera can withstand pretty much anything, regardless of heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-40 °F to 140 °F), ensuring all-year-round protection wherever you live.

Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.

  • Metal

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • -40 °F | -40 °C

    Cold Rating

  • IP66

    Water Rating

  • Download NAK200 Specification

    Download DVR Specification

    What's in the Box
  • NCA200 Security Camera(s)
  • 5MP 8 Channel DVR (DW61LD
  • BNC Cables(s)
  • Mounting Screw Bag(S)(The quantity varies based on your choice.)
  • User Manual
  • Camera
    Image Sensor2MP CMOS Image Sensor Video Resolution1920 (H) X 1080 (V)
    Lens2.8 mm Angle of View121°
    Min. Illumination0.001 Lux@(F1.0, AGC On), 0 Lux with White Light Signal SystemTVI: 1080p@25 fps, 1080p@30 fps
    CVI: 1080p@25 fps, 1080p@30 fps
    AHD: 1080p@25 fps, 1080p@30 fps
    CVBS: PAL/NTSC
    Number of Warm Light1 Light DistanceUp to 65 ft/20 m
    DNR3D DNR Wide Dynamic Range130 dB WDR
    Video OutputHD BNC X1
    Image Sensor1080p CMOS Image Sensor
    Lens2.6 mm
    Min. Illumination0.001 Lux@(F1.0, AGC On), 0 Lux with White Light
    Number of Warm Light1
    DNR3D DNR
    Video OutputHD BNC X1
    Video Resolution 1980 (H) X 1080 (V)
    Angle of View 121°
    Signal SystemTVI: 1080p@25 fps, 1080p@30 fps
    CVI: 1080p@25 fps, 1080p@30 fps
    AHD: 1080p@25 fps, 1080p@30 fps
    CVBS: PAL/NTSC
    Light Distance Up to 65 ft/30 m
    Wide Dynamic Range 130 dB WDR
    General
    HousingMetal ColourWhite
    Operating PowerDC 12 V Indoor/OutdoorIndoor/Outdoor
    Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C Dimension162.7 mm X 70 mm X 70.2 mm (6.41" X 2.75" X 2.75")
    Weatherproof RatingIP66 Weight0.57 lb./ 265.5 g
    HousingMetal
    Operating PowerDC 12 V
    Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C
    Weatherproof RatingIP66
    Colour White
    Indoor/Outdoor Indoor/Outdoor
    Dimension162.7 mm X 70 mm X 70.2 mm (6.41" X 2.75" X 2.75")
    Weight 0.57 lb./ 265 g
    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+ Video OutputHDMI and VGA Up to 1080P
    16CH Analog HD/Analog+2CH IP Analog HD Recording ResolutionFor 5 MP stream access: 5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
    For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    Audio Input/Output1/1 RCA Analog HD Playback Resolution5MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
    IPC Recording ResolutionUp to 6MP IPC Playback ResolutionUp to 6MP
    16CH/ 16CH ProtocolsSupport
    Video CompressionH.264+/H.264/H.265/H.265+
    Video Input16CH Analog HD/Analog+2CH IP
    Audio Input/Output1/1 RCA
    IPC Recording ResolutionUp to 6MP
    16CH/ 16CH
    Video Output HDMI and VGA Up to 1080P
    Analog HD Recording Resolution For 5 MP stream access: 5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
    For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    Analog HD Playback Resolution 5MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
    IPC Playback Resolution Up to 6MP
    Protocols Support
    Hard Drive
    HDD1 SATA interface HDD CapacityUp to 6TB capacity
    HDD1 SATA interface
    HDD Capacity Up to 6TB capacity
    General
    Network interfaceRJ45x1(10/100M) Working Condition-14 °F – 131 °F /-10 °C – 55 °C
    BNC Output Alarm Input/Output
    RS485 USBUSB2.0x2
    Operating PowerDC12V Dimensions(W x H x D)260 × 222 × 45 mm
    Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD)
    Network interfaceRJ45x1(10/100M)
    BNC Output
    RS485
    Operating PowerDC12V
    Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD)
    Working Condition -14 °F – 131 °F /-10 °C – 55 °C
    Alarm Input/Output
    USB USB2.0x2
    Dimensions(W x H x D) 260 × 222 × 45 mm
