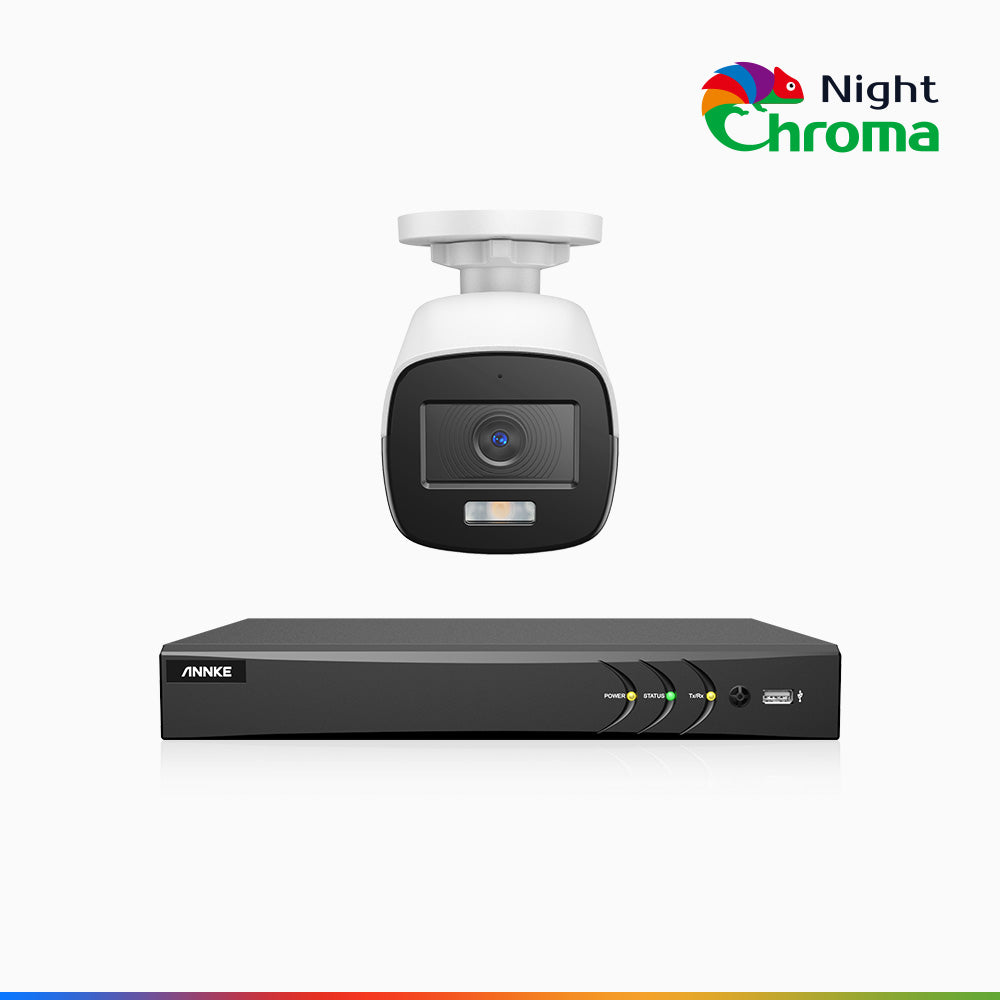

NightChromaTM NAK500 - Updated Version, 3K 8 Channel 1 Camera TVI Security System, Acme Color Night Vision, 2960 × 1665 Resolution, f/1.0 Aperture (0.001 Lux), Built-in Microphone, IP67

SKU: AU-DT81DX-CR1CY01
$131.99
$179.99
$131.99
Appearance: Bullet
HDD Capacity: NO HDD
Subtotal: $131.99
NightChroma<sup>TM</sup>  NAK500 - Updated Version, 3K 8 Channel 1 Camera TVI Security System, Acme Color Night Vision, 2960 × 1665 Resolution, f/1.0 Aperture (0.001 Lux), Built-in Microphone, IP67

NightChroma<sup>TM</sup> NAK500 - Updated Version, 3K 8 Channel 1 Camera TVI Security System, Acme Color Night Vision, 2960 × 1665 Resolution, f/1.0 Aperture (0.001 Lux), Built-in Microphone, IP67

$179.99 $131.99

NightChroma<sup>TM</sup> NAK500 - Updated Version, 3K 8 Channel 1 Camera TVI Security System, Acme Color Night Vision, 2960 × 1665 Resolution, f/1.0 Aperture (0.001 Lux), Built-in Microphone, IP67

$179.99 $131.99
Appearance: Bullet
HDD Capacity: NO HDD

Paint Starry Night into
3K Colorful World

ANNKE-Only Acme Color Night Vision

Say goodbye to boring B&W or blurry color night vision captured by traditional cameras. Instead, you can paint dark night into 5MP colorful world even in 0.001 lux conditions without ambient lighting, or 0 lux with the supplement light.

Audio Recording with Built-in Mic

The camera's built-in microphone supports coaxial transmission, allowing you to hear and record crisp, clear audio without using any additional cables to power the microphone.

4-in-1 HD TVI/CVI/AHD/CVBS

One port for four switchable signals(TVI/AHD/CVI/CVBS), you can select from a wide range of compatibility with the camera’ s selectable output.

Top-of-the-Line Image Enhancement Technologies

The wired camera adopts 4 incredible image enhancement technologies – digital WDR, 2D DNR, BLC – to provide the splendid 3K Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

Work with ANNKE NVRs for 24/7 Record

This IP video camera can work standalone for your unlimited live stream. You can also connect the camera to an ANNKE Upgraded 4K PoE NVR with just a single Ethernet cable for 24/7 record.

Uninterrupted Surveillance, Even in Extreme Environment

Engineered to thrive in the harshest environments while providing steadfast surveillance capabilities. With an IP67 rating for water and dust resistance, coupled with an impressive operating temperature range of -40 °F to 140 °F (-40 °C to 60 °C), this camera is the epitome of durability and reliability.

  • -40 °F | -40 °C

    Cold Rating

  • Plastic

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • IP67

    Water Rating

  • Download NAK500 Specification

    What's in the Box
  • 1X Camera(s)
  • 1X BNC Cables(s)
  • 1X Power Adapter
  • 1X Mounting Screws Bag
  • 1X User's Manual For Camera
  • Camera
    Image sensor3K CMOS Image sensor Video Resolution2960 (H) × 1665 (V)  (16:9)
    Signal SystemPAL/NTSC Lens2.8mm
    Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
    AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
    CVI: 4 MP@25 fps/30 fps
    CVBS: PAL/NTSC
    Video Output BNC, switchable TVI/AHD/CVI/CVBS
    Min.IlluminationColor:0.001 Lux @ (F1.0,AGC ON),0 Lux with white light Angle of ViewHorizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
    Supplement Light type1 white Light Supplement Light Rangewhite Light : Up to 20 m
    Wide Dynamic RangeDigital WDR AudioBuilt-in mic
    Day/Night ModeColor
    Image sensor3K CMOS Image sensor
    Signal SystemPAL/NTSC
    Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
    AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
    CVI: 4 MP@25 fps/30 fps
    CVBS: PAL/NTSC
    Min.IlluminationColor:0.001 Lux @ (F1.0,AGC ON),0 Lux with white light
    Supplement Light type1 white Light
    Wide Dynamic RangeDigital WDR
    Day/Night ModeColor
    Video Resolution 2960 (H) × 1665 (V)  (16:9)
    Lens 2.8mm
    Angle of View Horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
    Supplement Light Range white Light : Up to 20 m
    Audio Built-in mic
    Video Output BNC, switchable TVI/AHD/CVI/CVBS
    General
    HousingPlastic  ColorWhite
    Operating Power12 VDC ± 25% ConsumptionMax. 2.9 W
    Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C Indoor/OutdoorIndoor/Outdoor
    Weatherproof RatingIP67 Dimension (L x W x H)161.1 mm × 70 mm × 70 mm (6.34" × 2.76 " × 2.76")
    WeightApprox. 238 g (0.52 lb.)
    HousingPlastic
    Operating Power12 VDC ± 25%
    Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C
    Weatherproof RatingIP67
    WeightApprox. 238 g (0.52 lb.)
    Color White
    Consumption Max. 2.9 W
    Indoor/Outdoor Indoor/Outdoor
    Dimension (L x W x H) 161.1 mm × 70 mm × 70 mm (6.34" × 2.76 " × 2.76")
