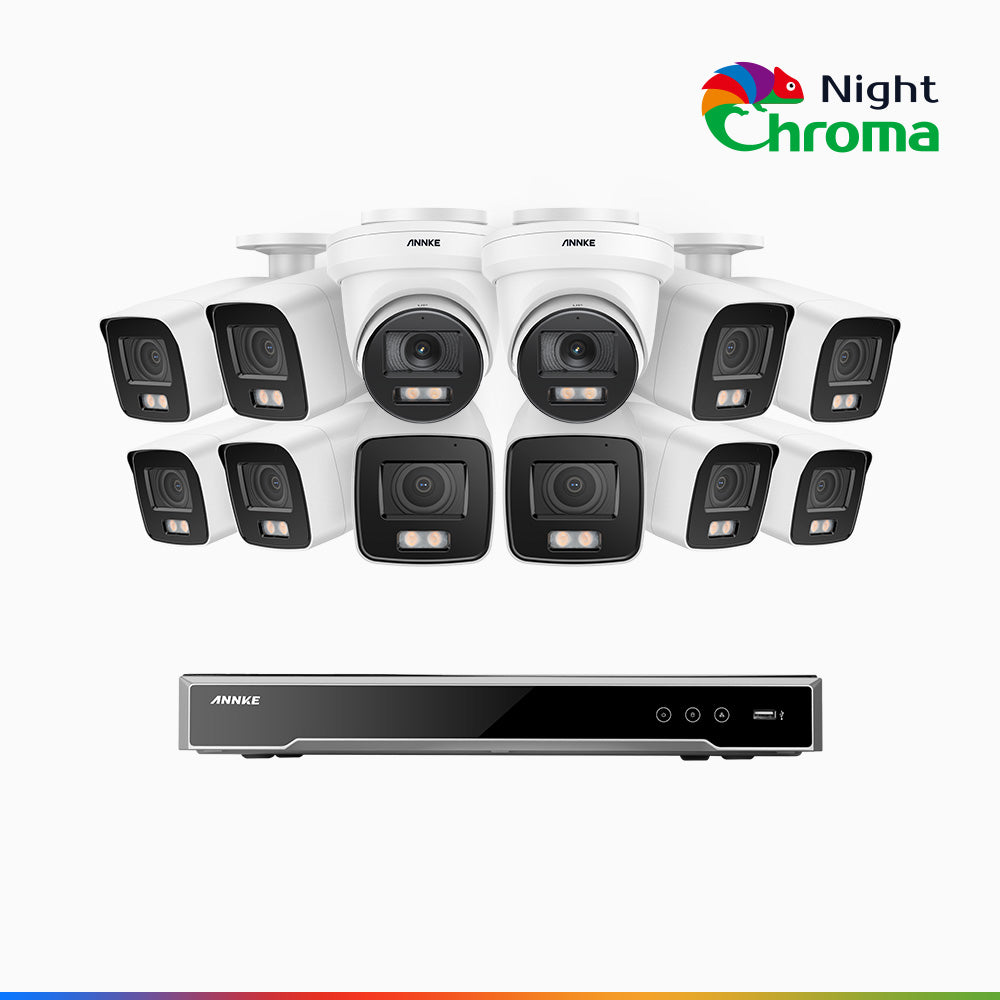

NightChromaTM NCK800 – 4K 16 Channel PoE Security System with 10 Bullet & 2 Turret Cameras, f/1.0 Super Aperture, Color Night Vision, 2CH 4K Decoding Capability, Human & Vehicle Detection, Intelligent Behavior Analysis, Built-in Mic, 124° FoV

SKU: N96PBH+I91BQ*10+I91BV*2
$3,689.99
$4,639.99
$3,689.99
Capacity: NO HDD
Subtotal: $3,689.99
NightChroma<sup>TM</sup> NCK800 – 4K 16 Channel PoE Security System with 10 Bullet & 2 Turret Cameras, f/1.0 Super Aperture, Color Night Vision, 2CH 4K Decoding Capability, Human & Vehicle Detection, Intelligent Behavior Analysis, Built-in Mic, 124° FoV

NightChroma<sup>TM</sup> NCK800 – 4K 16 Channel PoE Security System with 10 Bullet & 2 Turret Cameras, f/1.0 Super Aperture, Color Night Vision, 2CH 4K Decoding Capability, Human & Vehicle Detection, Intelligent Behavior Analysis, Built-in Mic, 124° FoV

$4,639.99 $3,689.99

NightChroma<sup>TM</sup> NCK800 – 4K 16 Channel PoE Security System with 10 Bullet & 2 Turret Cameras, f/1.0 Super Aperture, Color Night Vision, 2CH 4K Decoding Capability, Human & Vehicle Detection, Intelligent Behavior Analysis, Built-in Mic, 124° FoV

$4,639.99 $3,689.99
Capacity: NO HDD

Colorize Night into Acme 4K Ultra HD

Unique & Unrivaled Tech Behind Acme Color Night Vision

Experience unparalleled 3K QHD color night vision with NightChroma™ NC500. Featuring an f/1.0 super aperture, advanced backside illumination sensor, high-performance ISP, and precise micro-size alignment, it ensures brighter, clearer, and high-fidelity images. Soft supplement light ensures optimal vision in 0 lux conditions.

Best 4K Ultra HD at 20 fps with 1/1.2″ Sensor

The PoE camera offers unparalleled 4K clarity with the pioneering 1/1.2″ STARVIS CMOS sensor. This flagship sensor captures the most authentic colors in every frame, every time. The 2.8 mm lens with an ultra-wide 124° diagonal angle covers a lot of objects, perfect for monitoring large areas.

4 Smartest Behavior Analysis

The smartest behavior analysis analyzes an object’s behavior, including line crossing, intrusion, region entrance & exit, and sends you instant alerts when an object crosses the preset virtual line or intrudes a region, or when it enters/exits the preset areas.

Human & Vehicle Detection – Perfection in Motion

It’s a leap in smart motion detection. The advanced human & vehicle detection will only detect a person or vehicle, which helps reduce the number of unwanted motion alerts triggered by animals, or random inanimate objects, like waving branches, falling leaves, raindrops, etc.

Noise-Cancelling Audio

The built-in noise-cancelling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away.

Work with ANNKE NVRs for 24/7 Record

This IP video camera can work standalone for your unlimited live stream. You can also connect the camera to an ANNKE Upgraded 4K PoE NVR with just a single Ethernet cable for 24/7 record.

Engineered to Conquer All Severe Weather

With the IP67 weatherproof rating, the powerful camera is built to be installed outdoors & indoors without limitation. It still works perfectly even submerged in 1 meter of water for 30 minutes.

Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.

  • Metal

    Rugged Housing

  • -22 °F | -30 °C

    Cold Rating

  • 140 °F | 60 °C

    Heat Rating

  • IP67

    Water Rating

  • Small on Prices, Big on Features

  • Local Storage

    Supports up to 256 GB TF card (not included) for local video storage without monthly cloud fees.

  • Image Enhancement

    20 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 3K Super HD clarity.

  • Unlimited Remote Access

    Easily access your system via intuitive ANNKE Vision App from virtually anywhere in the world.

  • PoE or DC Power

    Power on the camera via PoE or plug the camera to an outlet for power supply.

  • Download NCK800 Specification

    What's in the Box
  • ➀ 1X Security Camera
  • ➁ 1X Mounting Screw Bag
  • ➂ 1X User Manual
  • Camera
    Image Sensor1/1.2" Progressive Scan CMOS Video Bitrate32 Kbps — 16 Mbps
    Video Resolution50 Hz: 20 fps (3840 X 2160, 3072 X 1728)
    25 fps (2688 X 1520, 1920 X 1080, 1280 X 720)
    60 Hz: 20 fps (3840 X 2160, 3072 X 1728)
    30 fps (2688 X 1520, 1920 X 1080, 1280 X 720)
    Video CompressionMain Stream: H.265/H.264/H.264+/H.265+
    Sub-Stream: H.265/H.264/MJPEG
    Third Stream: H.265/H.264
    Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Input/OutputBuilt-in Microphone
    Sub Stream50 Hz: 25 fps (640 X 480, 640 X 360, 320 X 240)
    60 Hz: 30 fps (640 X 480, 640 X 360, 320 X 240)
    Perimeter ProtectionLine Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection
    Min. Illumination0.0005 Lux @ (F1.0, AGC On), 0 Lux with Light Angle of ViewHorizontal FoV 102°, Vertical FoV 52°, Diagonal FoV 124°
    Night Vision DistanceUp to 130 ft/40 m Image EnhancementBLC, HLC, 3D DNR
    Wide Dynamic Range130 dB WDR Face CaptureYes
    Network StorageMicroSD/SDHC/SDXC card (256 GB) Local Storage, and NAS (NFS, SMB/CIFS) Smart EventMotion Detection 2.0 (Human and Vehicle), Line Crossing Detection, Intrusion Detection
    ONVIFSupport Day/Night SwitchDay, Night, Auto, Schedule
    EthernetRJ45 X1 (10 M/100 M)
    Image Sensor1/1.2" Progressive Scan CMOS
    Video Resolution50 Hz: 20 fps (3840 X 2160, 3072 X 1728)
    25 fps (2688 X 1520, 1920 X 1080, 1280 X 720)
    60 Hz: 20 fps (3840 X 2160, 3072 X 1728)
    30 fps (2688 X 1520, 1920 X 1080, 1280 X 720)
    Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
    Sub Stream50 Hz: 25 fps (640 X 480, 640 X 360, 320 X 240)
    60 Hz: 30 fps (640 X 480, 640 X 360, 320 X 240)
    Min. Illumination0.0005 Lux @ (F1.0, AGC On), 0 Lux with Light
    Night Vision DistanceUp to 130 ft/40 m
    Wide Dynamic Range130 dB WDR
    Network StorageMicroSD/SDHC/SDXC card (256 GB) Local Storage, and NAS (NFS, SMB/CIFS)
    ONVIFSupport
    EthernetRJ45 X1 (10 M/100 M)
    Video Bitrate 32 Kbps — 16 Mbps
    Video Compression Main Stream: H.265/H.264/H.264+/H.265+
    Sub-Stream: H.265/H.264/MJPEG
    Third Stream: H.265/H.264
    Audio Input/Output Built-in Microphone
    Perimeter Protection Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection
    Angle of View Horizontal FoV 102°, Vertical FoV 52°, Diagonal FoV 124°
    Image Enhancement BLC, HLC, 3D DNR
    Face Capture Yes
    Smart Event Motion Detection 2.0 (Human and Vehicle), Line Crossing Detection, Intrusion Detection
    Day/Night Switch Day, Night, Auto, Schedule
    General
    HousingFront Cover: Metal, Back Cover: Metal ColorWhite
    Operating PowerPoE 802.3af, Class 3), 12 V DC ± 25% StorageMicroSD/SDHC/SDXC card (256 GB) local storage &NAS (NFS, SMB/CIFS), ANR
    Hardware ResetYes Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension (L X W X H)78.8 X 78.6 X 215.2 mm (3.1'' X 3.1'' X 8.5'') Weight1.9 lbs./860 g
    HousingFront Cover: Metal, Back Cover: Metal
    Operating PowerPoE 802.3af, Class 3), 12 V DC ± 25%
    Hardware ResetYes
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L X W X H)78.8 X 78.6 X 215.2 mm (3.1'' X 3.1'' X 8.5'')
    Color White
    Storage MicroSD/SDHC/SDXC card (256 GB) local storage &NAS (NFS, SMB/CIFS), ANR
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Weatherproof Rating IP67
    Weight 1.9 lbs./860 g
