1/2.7” Progressive Scan CMOS
2560 x 1920 @ 25fps
FOV: horizontal 30° to 101°, vertical 22.4° to 73°, diagonal field of view: 37° to 137°

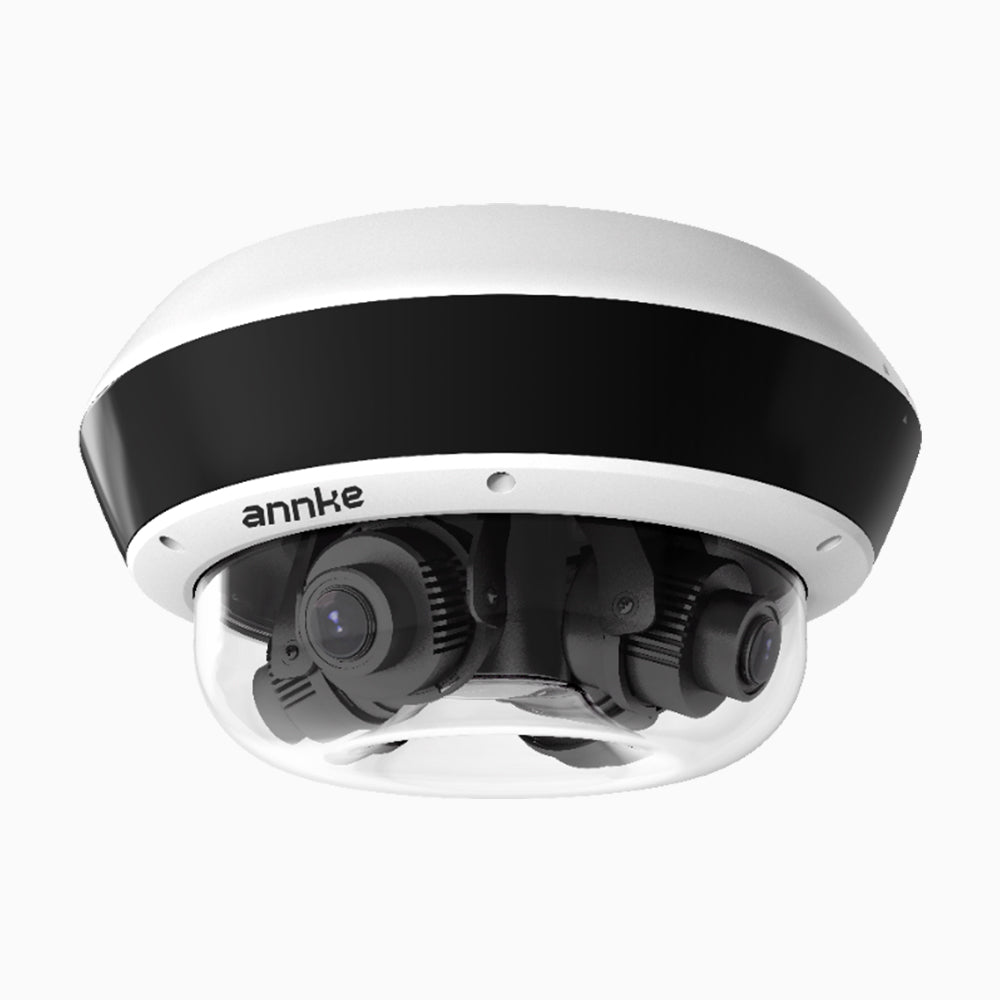

4 adjustable lenses in one camera cover up to a 360° field of view, ensuring zero-blind zone monitoring.
The monitoring tilt angle can also be adjusted.
Each lens has a resolution of up to 5 MP, capturing clear images.
More details can be displayed on a video wall.
A built-in heater provides ultra-low temperature start-up to -40℃.
IP67/IK10 water resistant and vandal proof, preventing water ingress for outdoor use.
FC interface: the camera can be connected by fiber optical cable for the transfer of data over long distances.
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements.
Download DS-2CD6D54FWD Specification
| Camera | Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 2560 x 1920 | |
| Min. Illumination | Color: 0.006 Lux @ (F1.2, AGC ON), 0.010 Lux @ (F1.6, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON),0 Lux with IR on | |
| Shutter Time | 1 s - 1/100,000 s | |
| Day & Night | IR Cut Filter | |
| Angle Adjustment | Four flexible lens in one track, slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355° | |
| Lens | Focal Length & FOV | 2.8mm to 12mm, Horizontal field of view: 30° to 101°,Vertical field of view: 22.4° to 73°,Diagonal field of view: 37° to 137° |
| Lens Mount | Φ14 | |
| Aperture | F1.6 | |
| Illuminator | Supplement Light Type | IR |
| Supplement Light Range | 10 m to 30 m | |
| IR Wavelength | 850 nm | |
| Video | Main Stream | 50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720),60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 x 1080,1280 x 720) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 | |
| Video Bit Rate | 32 Kbps to 16 Mbps | |
| Image | Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) | |
| Wide Dynamic Range (WDR) | 120 dB | |
| Image Enhancement | BLC, 3D DNR, EIS | |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format | |
| Interface | Ethernet Interface | 1 RJ45 10 M/100 M/1000 M Ethernet port,1 RS-485 interface (-S),1 1000M FC fiber optical interface (-/NFC) |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Audio | 1-ch 3.5 mm input (line in/Mic in), 1-ch 3.5mm output, dual-track, stereo | |
| Alarm | 2 inputs, 2 outputs (up to 24 VD, 1A or 110 VAC, 500mA ) | |
| Fiber Optical | FC interface, single mode, single fiber, 20 km transmission distance, (Tx)1310 nm/ 1.25G, (Rx)1550 nm/1.25 G | |
| Event | Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Face Detection, audio exception detection, scene change detection, defocus detection |
|
| General | Power | 12 VDC ± 20%: 2.3 A, max. 28 W, 24 VAC ± 20%, 2.5 A, max. 50 to 60 Hz (for customization)，three-core terminal block -IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, 0.9 A to 0.6 A, max. 34W -Z: PoE (802.3at): 42.5 VDC to 57 VDC, max. 17W |
| Material | Aluminum alloy, engineering plastics | |
| Dimension | Ø290 mm × 145.5 mm (Ø11.42" × 5.73") | |
| General Function | One-key reset, anti-flicker, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter | |
| Protection | IP67, IK10 | |
